Helical Piers vs. Caissons

The foundation of any structure is the bedrock upon which its stability rests. When it comes to supporting buildings and infrastructure, two popular options often come into consideration: helical piers and caissons.

Helical Piers vs. Caissons: Unearthing the Best Foundation Solution

The foundation of any structure is the bedrock upon which its stability rests. When it comes to supporting buildings and infrastructure, two popular options often come into consideration: helical piers and caissons. Both techniques have their unique advantages, and understanding the differences between them is crucial for making informed decisions in construction projects.

Helical Piers: The Twist in Foundation Technology

How They Work: Helical piers, also known as screw piles, are innovative foundation solutions that resemble oversized screws. These piers are installed into the ground with a twisting motion, penetrating through the soil until they reach load-bearing strata. The helical design allows for efficient installation and provides excellent resistance to both compression and tension forces.

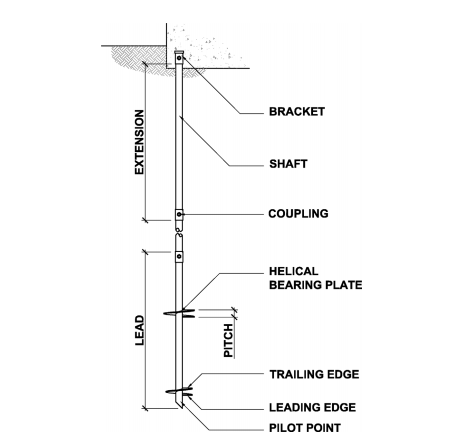

Helical Piers

Galvanized steel posts with angled helical plates that can be screwed deep into the earth to reach stable load bearing soil. Load bearing strength can be calculated through the torque required to drive the pier. Requires no excavation or cure time.

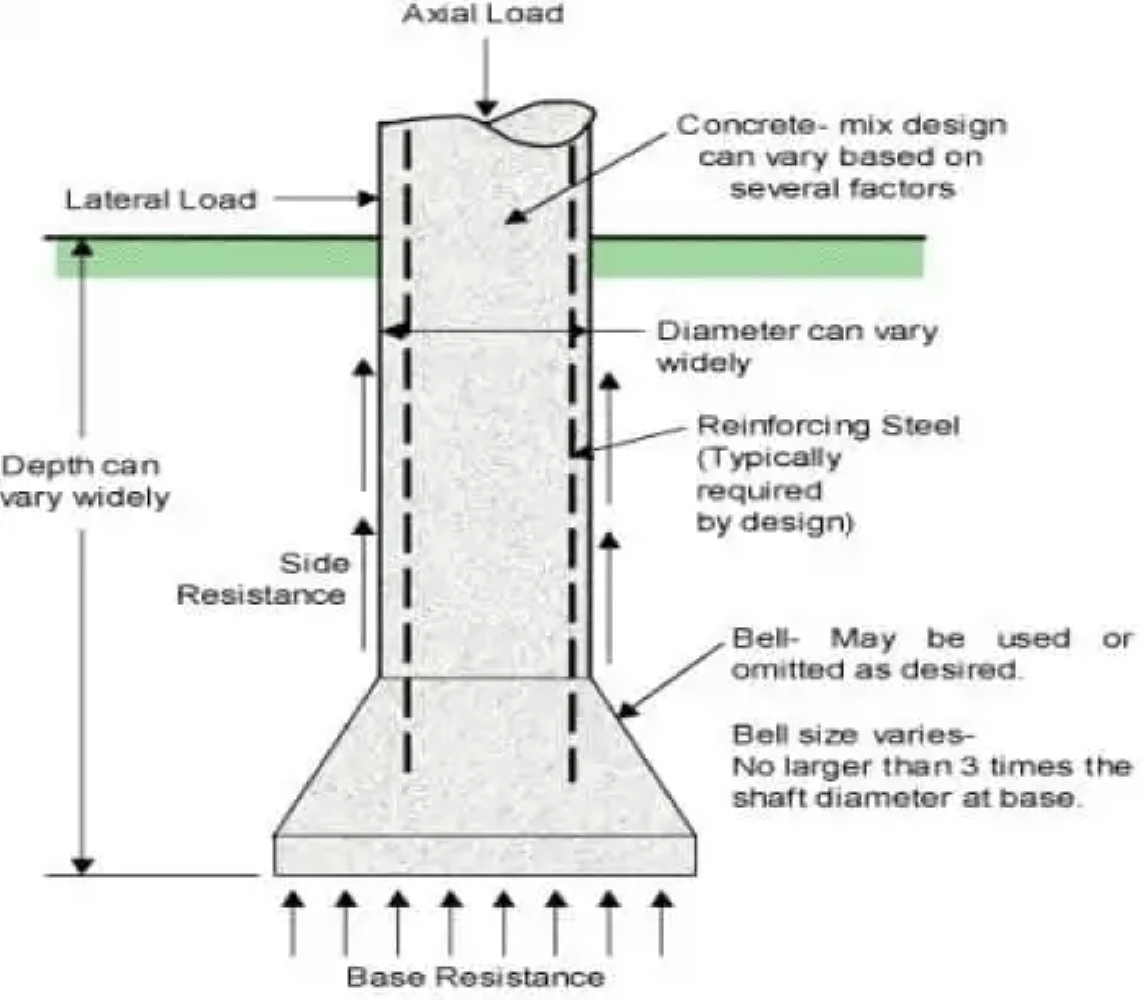

Caissons

Heavy steel reinforced concrete structures that penetrate deep into the earth to reach stable load bearing soil. Caissons require extensive excavation and concrete curing times.

Advantages:

Morbi nec accumsan sem. Suspendisse eget elit mauris. Phasellus velit nisi, lobortis quis nisi et, venenatis finibus velit. Integer non nibh eget arcu malesuada ullamcorper. Quisque congue ante in consequat auctor. Morbi ut accumsan eros.

Versatility:
Helical piers are versatile and can be used in various soil conditions, making them suitable for a wide range of projects.
Minimized Disturbance:
Installation is relatively non-intrusive, causing minimal disturbance to the surrounding environment.
Immediate Load Transfer:
Helical piers can often bear loads immediately after installation, reducing project timelines.
Applications:
• Residential Foundations • Light Commercial Buildings • Foundation Repair and Underpinning
Caissons: Delving Deep for Stability
How They Work:
Caissons, also known as drilled piers or bored piles, involve drilling cylindrical holes into the ground and filling them with concrete and reinforcing materials. These deep foundations transfer loads to the bedrock or stable soil at greater depths.
Advantages:
Deep Foundation Support:
Caissons are ideal for projects requiring deep foundation support, especially in areas with unstable surface soils.
High Load-Bearing Capacity:
They can support heavy loads and are often used in large commercial and industrial structures.
Suitability for Expansive Soils:
Caissons are effective in areas with expansive clay soils or where high lateral resistance is required.
Applications:
• High-Rise Buildings • Bridges and Overpasses • Industrial Structures
Choosing the Right Solution:
Consider the Following:
Soil Conditions:
Helical piers are adaptable to various soil types, while caissons excel in challenging soil conditions.
Load Requirements:
For lighter structures, helical piers may offer a more cost-effective solution. Caissons are preferable for heavy loads and deep foundations.
Installation Method:
Helical piers generally have a quicker and less disruptive installation process compared to the deeper drilling required for caissons.

Conclusion

Ultimately, the choice between helical piers and caissons depends on the specific requirements of the project. While helical piers offer versatility and efficiency for many applications, caissons shine in projects demanding deep foundation support and high load-bearing capacity. A thorough site analysis and consultation with foundation experts will guide you toward the most suitable solution, ensuring a stable and enduring foundation for your construction endeavors.
